AIRCRAFT MATERIALS
i am licenced aircaft maintenance engineer. i have worked for 2 years as mechanic. Now i work as Quality Auditor. i want to share some aircraft expendables which can be deemed as standart aircraft parts suc as NAS, MS, BAC,etc. These are fasteners which are used commonly on wing, stabilizers, under fuselage, body fairings, cargo and cabin access panels. All standart parts should have proper certificate of conformity to install aircraft as per Annex II EASA Part 145.A.42(b) you can check EASA Part 145 regulations on my other blog https://easapart145checklist.blogspot.com/2021/10/easa-part-145-checklist.html
You may find it useful before you order from IPC or install on aircraft. i added their part numbers so you can identify their location on IPC and using ruler you can have idea of their sizes.
you have to find suitable size bolt for your access panels.sometimes the screws which is figured in the IPC may not suitable size for hole becuase of different nut plates. you may need longer gripe or shorter one.It is important that they should be greased with green or red grease (bms 3-33,etc..) according to the aircraft maintenance manuel before fitted so you can prevent corrosion and easily remove when needed.
here are some bolt,screw and nut plate which is used on B737 and B757 Series aircraft.Maybe some of them can be used on Airbus series.
1.BACB30NN3K6-BOLT
This is flat head countersink type screws used for aircraft under wing access panels such as slat and flap, body fairings, and fuselage external panels.
It is size's is 3/4 inch and grip lenght is 3/8 inch
 |
| BACB30NN3K6-BOLT |
|
| B737 Slat Access Panels |
 |
B737 Slat Access Panel NutPlate
 | | B737 Engine Pylon Access Panels |
|
 |
| B737 Engine Pylon Access Panel NutPlate |
 |
| B737 Wing Body Fairing |
 |
| B737 Wing Body Fairing Nutplate |
 |
| B737 Wing Body Fairing Nutplate inside Cargo |
2. BACB30NN3K7-BOLT
Flat head screw. It is size's is 13/16 inch and grip lenght is 7/16 inch |
| BACB30NN3K7-BOLT |
3.BACB30NN3K3-BOLT
Flat head screw.It's lenght is 9/16 inch and grip lenght is 3/16inch  |
| BACB30NN3K3-BOLT |
4.BACB30NN3K9-BOLT
Flat head screw.It's lenght is 7/8 inch and grip lenght is 9/16 inch
 |
| BACB30NN3K9-BOLT |
5.BACB30VF3K5-BOLT
Flat head screw.It's lenght is 22/32 inch and grip lenght is 11/32 inch
 |
| BACB30VF3K5 |
6.BACB30VF3K2-BOLT
Flat head screw.It's lenght is 7/16 inch and grip lenght is 5/32
 |
| BACB30VF3K2 |
 |
| cabin floor panel |
7.BACS12FA3K9-SCREW
Universal head screw which is most commonly used in cargo panels.It is lenght is 19/32 inch.No grip.
 |
BACS12FA3K9-Screw
 | B737 Cargo Sidewall Screw
|
|
8.
BACS12FA3K10-SCREWUniversal head screw .It is lenght is 21/32 inch.No grip.
 |
BACS12FA3K10-SCREW
|
9.BACB30XD3K5-SCREW
Flat head countersink 21/32 inch length, 5/16 inch grip length.
 |
| BACB30XD3K5-SCREW |
10.BACB30LH3-4-BOLT
Flat head countersink 5/8 inch lenght, 1/4 grip lenght
 |
| BACB30LH3-4-BOLT |
11.BACB30MY5K5-PIN RIVET
This is universal hi-lok rivet. 21/32 inch lenght, 3/8 inch grip lenght
 |
| BACB30MY5K5-PIN RIVET |
12.BACS12GP3L15-SCREW
This is flush head screw and has no grip. It can be used on cargo net tie down fitting installation.
 |
| BACS12GP3L15-SCREW |
 |
| cargo net tie down fitting |
13.BACS12ER3K10-SCREW
Flat type 19/32 inch lenght.no grip
 |
| BACS12ER3K10 |
14.NAS1102E3-10-SCREW
Flat type 19/32 inch lenght.no grip
 |
| NAS1102E3-10 |
15.BACN10D1G-NUT_PLATE
This is nut plate.It is most commonly used in cargo and cabin floor beam.
 |
| BACN10D1G Nut Plate |
16.BACN10YD1-NUT PLATE
This is nut plate.It is most commonly used in cargo and cabin floor beam.
 |
| cabin floor panel |
 |
| BACN10YD1 CLIP-NUT |
17.BACN10JR3CFD-CLIP_NUT
This is clip nut. It needs two small rivet to install aircraft.
 |
| BACN10JR3CFD-CLIP_NUT |
18.BACN10JR3CF-NUT_PLATE
 |
| .BACN10JR3CF-NUT_PLATE |
19.BACN10HR4C-NUT
Flange diameter is 13/32 inch.
 |
| BACN10HR4C-NUT |
20.NSA5728-803 STUD
A300-600 IPC 52-11-13 DOOR WINDOW LINING fastener.
Fastener 5/8 inch lenght.
 |
| NSA5728-803 STUD |
 |
| A300-600 IPC 52-11-13 DOOR WINDOW LINING |
a300-600 door window lining1 installation
 |
| a300-600 door window lining2 installation |
21.NAS1149C0332R-WASHER
 |

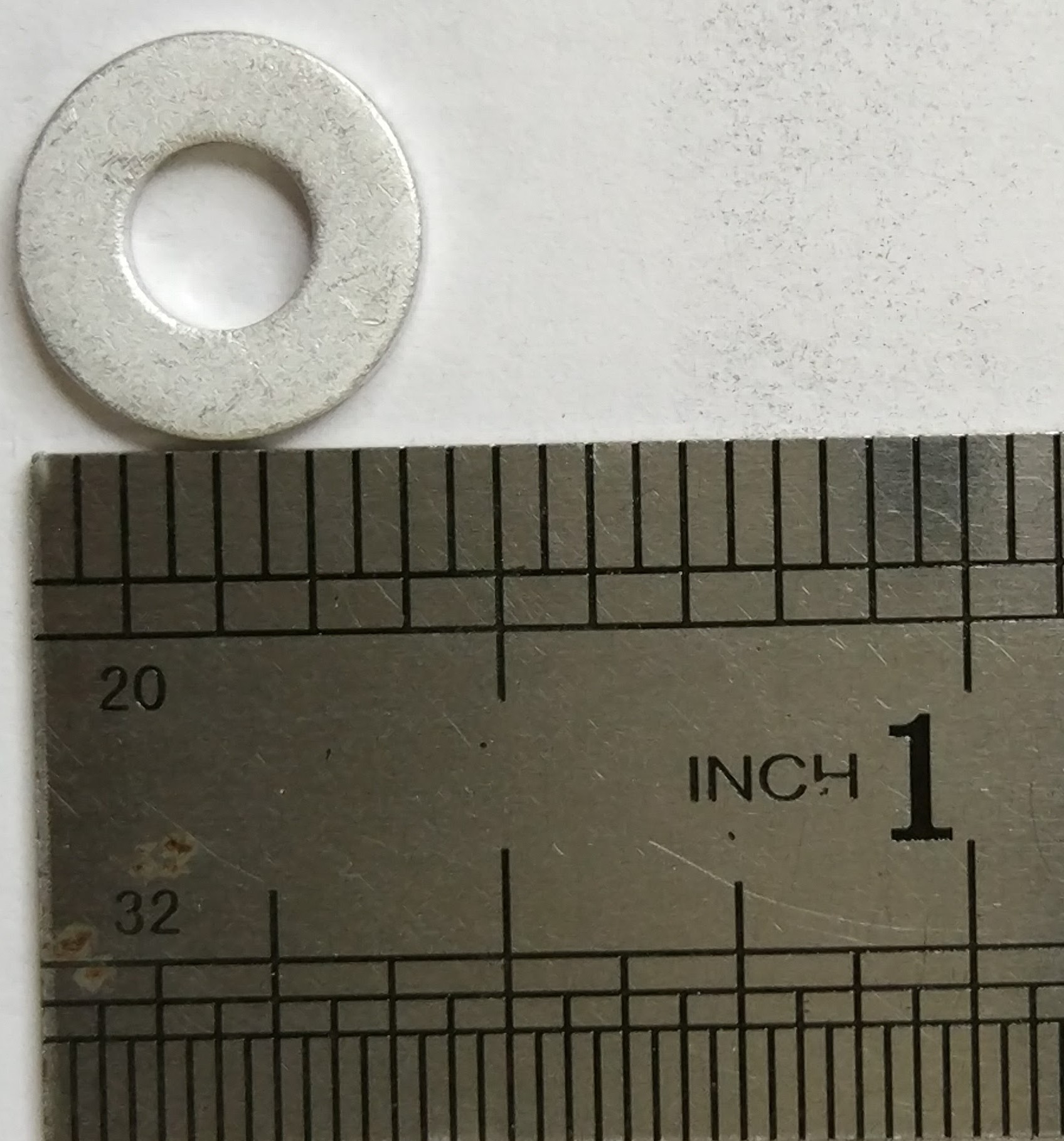

NAS1149C0332R-WASHER |
22. NAS1149D0363H -WASHER
 |
NAS1149D0363H -WASHER |
23. MS24665-132 COTTER PIN
3/4 inch lenght cotter pin
 |
MS24665-132 COTTER PIN |
24.BACW10UC10P WASHER
 |
| BACW10UC10P WASHER |
25. NAS1149D0332J WASHER
 |
NAS1149D0332J WASHER
|
26.NAS1149CO432R WASHER
 |
| NAS1149CO432R WASHER |
27.MS9245-27 COTTER PIN
29/32 inch lenght
 |
| MS9245-27 COTTER PIN |
28.MS24665-151 COTTER PIN
 |
MS24665-151 COTTER PIN
|
29.MS24665-155 COTTER PIN
 |
| MS24665-155 COTTER PIN |
30.MS24665-153-COTTER PIN
 |
| MS24665-153-COTTER PIN |
31.MS24665-134-COTTER PIN
 |
MS24665-134-COTTER PIN
|
32.BACS12FA3K5-SCREW
Universal head screw . 2/5 inch lenght. No grip.

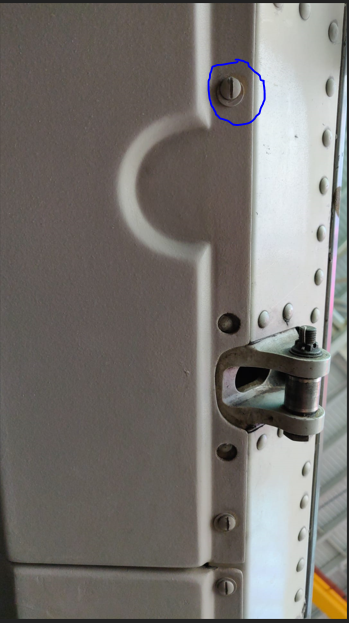

33.BACS21EE6R-TURNLOCK FASTENER STUD
it is commonly used in cargo and cabin panels.
 |
BACS21EE6R-TURNLOCK FASTENER STUD
|
34. NSA55132-114-TURNLOCK FASTENER STUD
 |
| NSA55132-114-TURNLOCK FASTENER STUD |
35.ABS0336-07-SCREW
it is used in cargo panels
 |
| ABS0336-07-SCREW |
36.ABS0691-020-TURNLOCK FASTENER STUD
 |
| ABS0691-020-TURNLOCK FASTENER STUD |
37. ABS0336-08-TURNLOCK FASTENER STUD
 |
| ABS0336-08-TURNLOCK FASTENER STUD |
38.ABS0376-3-2-SCREW
 |
| ABS0376-3-2-SCREW |
39. BACN10YD3-CLIPNUT
 |
| BACN10YD3-CLIPNUT |
40.BACN11AG3-NUT
 |
| BACN11AG3-NUT |
41. ABS0365-3-2B-CLIPNUT
 |
| ABS0365-3-2B-CLIPNUT |
